Suprema X-Station 2 is a versatile intelligent terminal that supports RFID cards, Mobile Access as well as QR codes, offering the ultimate flexibility in terms of credential options and system design. Equipped with secure boot process, Open Supervised Device Protocol (OSDP) and cameras for image logs, X-Station 2 improves security while safeguarding user data. X-Station 2 is easy to install, use and maintain with features like Power over Ethernet (PoE), intuitive GUI on 4 ” wide touchscreen, and IP65 rating.

01

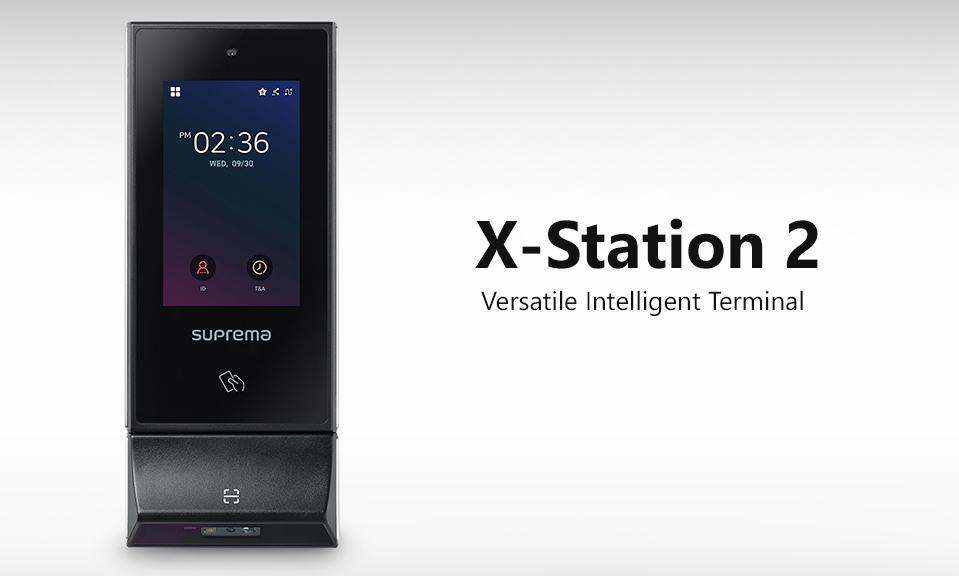

x-Station 2
Versatile Intelligent Terminal


BioStation is Suprema’s top selling fingerprint terminal. Features full navigation keys with number keypad, allows BioStation to be more than just an access control device, but serve as a full featured biometric solution for time management duties.

02

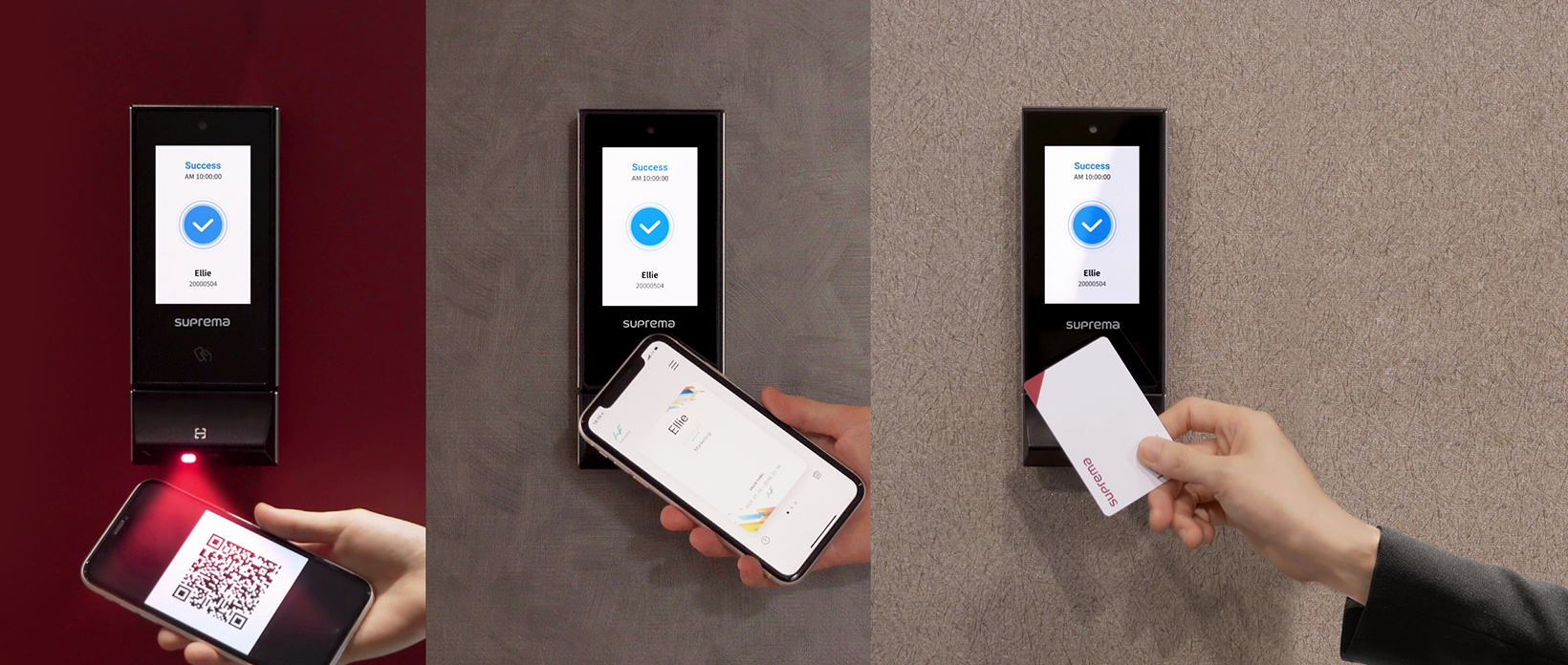

Multi-technology Terminal
with Various Credential Options

X-Station 2 provides multiple credential options of RFID cards, Mobile Access and QR codes, offering maximum system design flexibility. Mobile Access and QR code authentication let users go cardless and carefree by using smartphones as credentials.


NFC Near Field Communication
Communicates through NFC's HCE in Android
Protecting data communications by algorithmization of AES 128 bit encryption

03

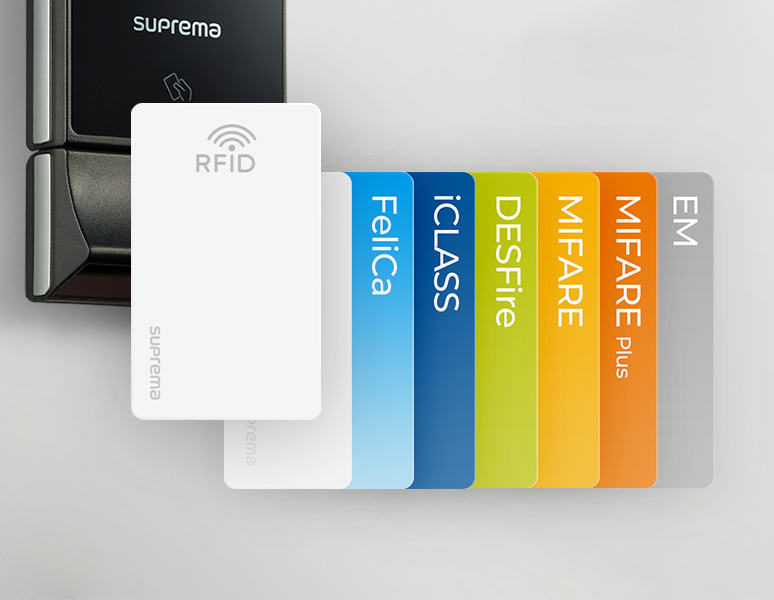

Comprehensive RFID Card Compatibility


X-Station 2 is compatible with most existing RFID card technology. It supports both LF (125kHz) and HF (13.56MHz) RFID as well as various card types including EM, MIFARE, MIFARE Plus, iCLASS, DESFire and FeliCa.

04

Enhanced Security and Data Protection


X-Station 2 guards against malware attacks and data breaches with secure boot process. By supporting OSDP (Open Supervised Device Protocol), the terminal encrypts bi-directional RS-485 communication. Using the built-in camera, X-Station 2 can also capture image logs for added security.

05

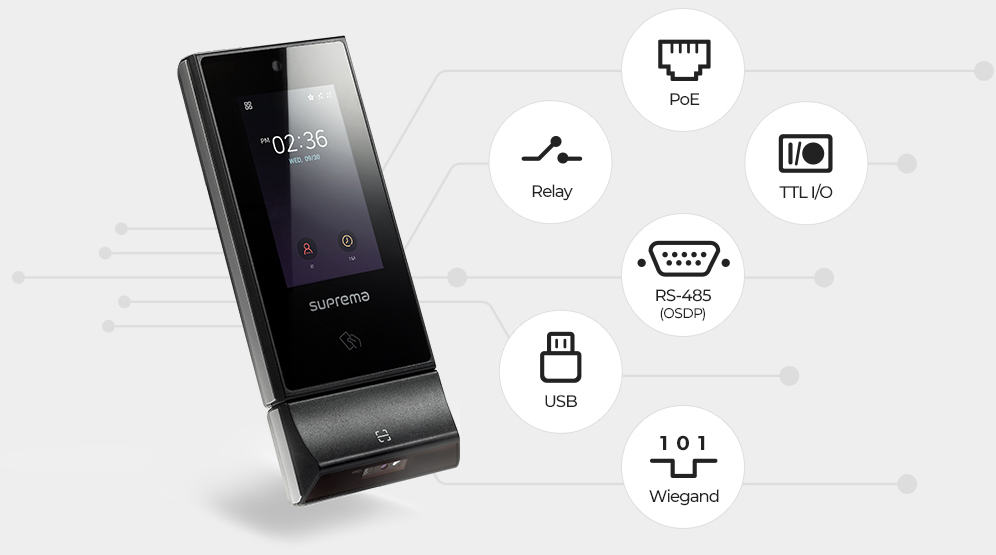

Designed for easy deployment and management


X-Station 2 enables convenient installation with less wiring by supporting Power over Ethernet (PoE) as well as various interfaces like Wiegand, RS-485, TTL input and Relay. IP65 rated, X-Station 2 is dust-tight, water resistant and easy to maintain.

06

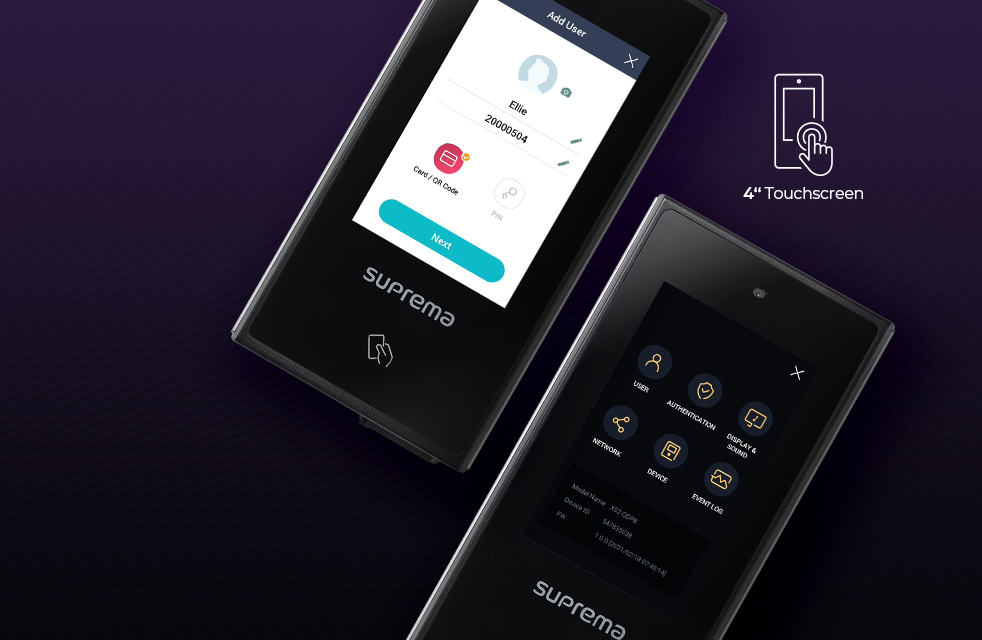

Improved Usability of Intuitive UI on Touchscreen


X-Station 2 allows quick and easy access to features on its 4 ” wide capacitive touchscreen. You can also customize the display for branding purposes.

07

Expanded Capacity for More Users and Security Logs


X-Station 2’s large memory can sufficiently meet enterprise needs. Its 16 GB Flash and 1 GB RAM can handle up to 500,000 users, 5 million text logs and 50,000 image logs.

USERS

500,000

IMAGE LOGS

50,000

TEXT LOGS

5,000,000

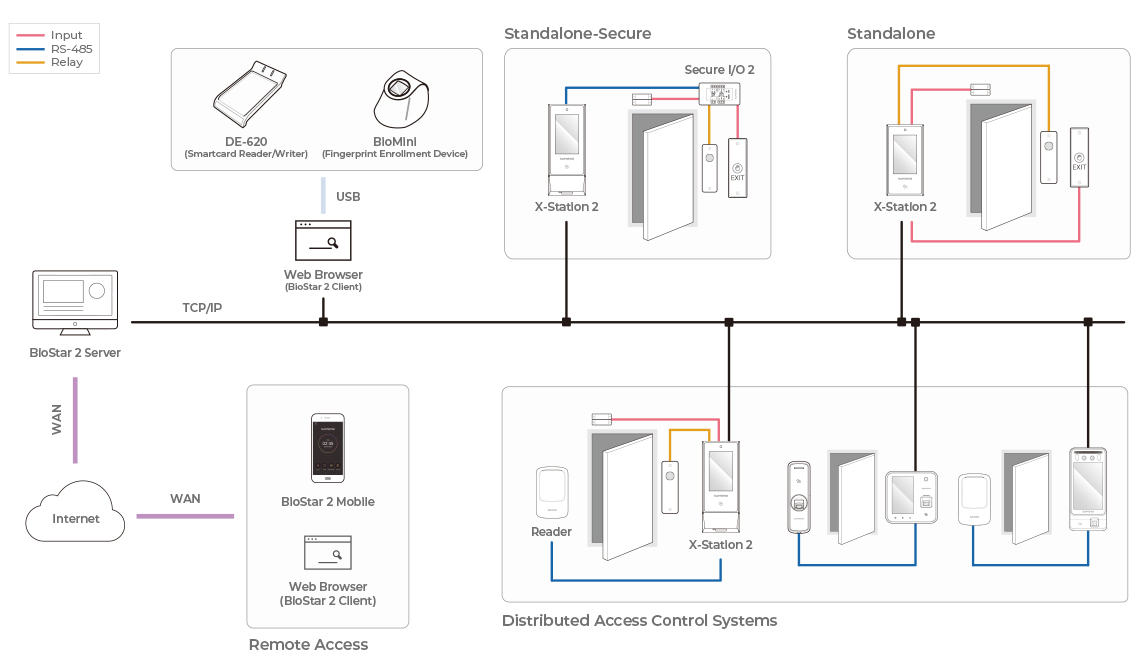

Configuration

Specification

Model Name XS2-DPB XS2-QDPB XS2-APB XS2-QAPB
RFID RF Option 125 kHz EM & 13.56 MHz MIFARE,
MIFARE Plus,
DESFire EV1/EV21), FeliCa
125 kHz EM, HID Prox & 13.56 MHz MIFARE,
MIFARE Plus,DESFire EV1/EV21),
FeliCa, iCLASS SE/SR/Seos
Mobile Card NFC, BLE
QR/Barcode N/A Supported2) N/A Supported2)
HW CPU 1.5 GHz Quad Core
Memory 16 GB Flash + 1 GB RAM
Max. User 500,000
Max. Logs Text 5,000,000 / Image 50,000
LCD 4" IPS color LCD / 480 x 800 pixels
Camera CMOS 2M pixels / 1600 x 1200
Operating temperature 20°C–50°C (-4°F–122°F)
Dimensions (WxHxD, mm) 82 mm x 159 mm
x 25.9 mm
82 mm x 203 mm
x 33.9 mm
82 mm x 159 mm
x 25.9 mm
82 mm x 203 mm
x 33.9 mm
Tamper Supported
Certificates KC, CE, FCC (Compliance: RoHS, REACH, WEEE)
Interface Ethernet Supported (10/100 Mbps, auto MDI/MDI-X)
RS-485 1 ch Host or Slave (Selectable)
Wiegand 1 ch Input or Output (Selectable)
TTL 2 ch Inputs
Relay 1 Relay
USB USB 2.0 (Host)
PoE Supported (IEEE 802.3af compliant)
IP rating IP65
Electrical Power DC 12 V (Max. 0.8 A) or DC 24 V (Max. 0.45 A)

1) DESFire EV2 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with X-Station 2.

2) Supports QR/Barcodes composed of up to 32 ASCII code strings. QR codes can be issued on
