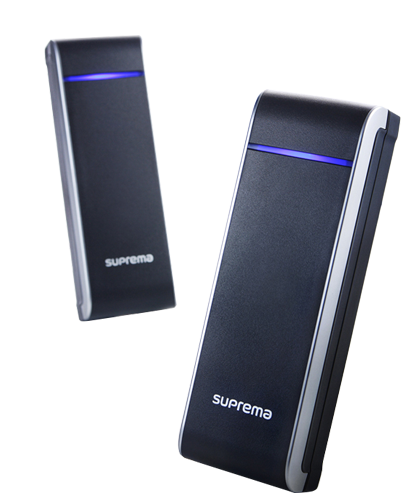

Xpass is powered by 32-bit microprocessor which allows seamless operation and uninterrupted sub-device control. Powerful CPU of Xpass gives the ability to deliver fast matching speeds and rapid responses while handling large amounts of data.
Featuring IP-based system topology and PoE, Xpass’s IP access control system offers extra flexibility in designing your security system while reducing cost on installation and maintenance. Compared to conventional access control system, IP access control provides lower cost per door with less wiring and utilization of existing network infrastructure.

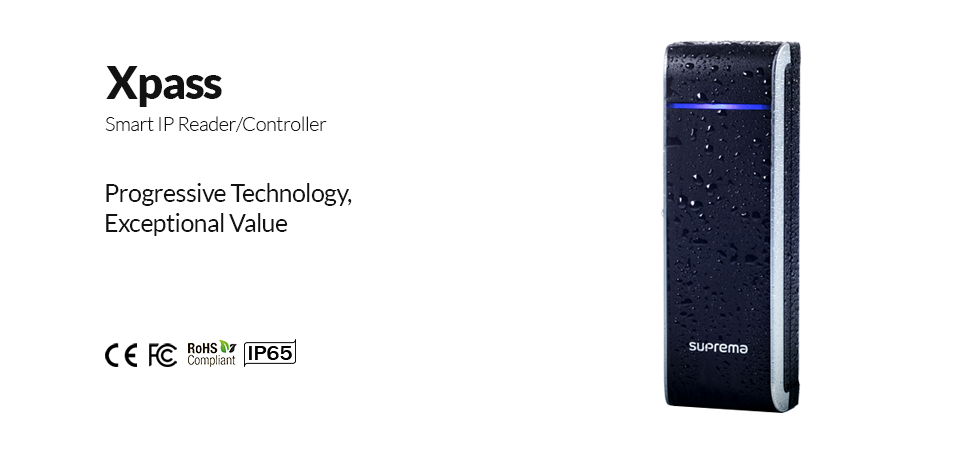

Xpass has been comprehensively sealed against invasive moisture, dust and liquid. Featuring IP65 rated protection, its meticulous sealing, and extra protective engineering ensures that Xpass will operate with unmatched reliability in all type of installation.
Xpass allows flexible system design and cost advantages with comprehensive communication interfaces and relays such as TCP/IP, RS485 and Wiegand. In addition, it provides multiple in/out relays to offer extra flexibility. For further expansion, optional external relay unit is also available.
Category |
Feature |
Xpass | Hardware |
CPU |
533MHz DSP |
---|---|---|---|---|---|
Main |
Biometric |
- | Memory |
16MB RAM + 8MB Flash |
|
IP Rating |
IP65 | LCD |
- | ||
RF Option |

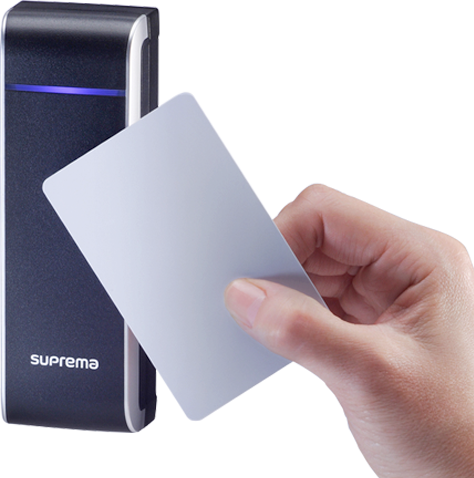

125KHz EM 125KHz HID Prox 13.56MHz MIFARE Classic®/DESFire® |
LED Indicator |
Multi-Color | ||
Multi-Controller |
Y (RF Only) | Sound |
16-bit Hi-Fi |
||
Capacity |
Max User (1:1) |
40,000 | Operating Temp. |
-20° to 50°C |
|
Max User (1:N) |
40,000 | Tamper |
Yes |
||
Max Template (1:1) |
- | Power |
12VDC |
||
Max Template (1:N) |
- | PoE |
- | ||
Max Text Log |
50,000 | Dimensions (W x H x D mm) |
45 x 130 x 27 | ||
Max Image Log |
- | ||||
Interface |
WiFi |
- | |||
TCP/IP |
Yes | ||||
RS-485 |
1ch Host or Slave (Selectable) |
||||
RS-232 |
- | ||||
Wiegand |
1ch In or Out (Selectable) |
||||
TTL Input |
2 Inputs | ||||
Relay |
1 Relay | ||||
USB |
- | Certificates | CE, FCC, MSIP(KCC),IP65,RoHS,REACH | ||
SD Card Slot |
- | Compatibility | BioStar | Yes |
